JNF Hydraulic Pivot 350 Plus

JNF Hydraulic Pivot 350 Plus

Regular price $2,400.00 AUD
Regular price Sale price $2,400.00 AUD
Sale Sold out

SKU:IN.05.215.HO

JNF Hydraulic Pivot 350 Plus – Unmatched Innovation for Premium Doors

The JNF Hydraulic Pivot 350 Plus sets a new standard in door hardware, delivering superior durability and flawless performance for large swing doors up to 350kg. Exclusively distributed by Apollo Design in Australia, this advanced hydraulic pivot system combines innovative engineering with a sleek, modern aesthetic, making it the ultimate choice for premium wooden doors.

Why Choose the IN.05.215.HO JNF Hydraulic Pivot 350 Plus?

Engineered for Heavy-Duty Applications

Designed to support doors weighing between 50kg and 350kg, with dimensions up to 3000mm wide and 4000mm high. The system includes a force adjustment feature, ensuring precision and reliability even after installation.

Advanced Hydraulic Technology

Equipped with CAM SYSTEM and hydraulics for effortless opening and precise closing control. Dual valves allow fine-tuning of the initial and final closing speeds, making it ideal for doors with locks that require smooth and secure operation.

Discreet, Modern Design

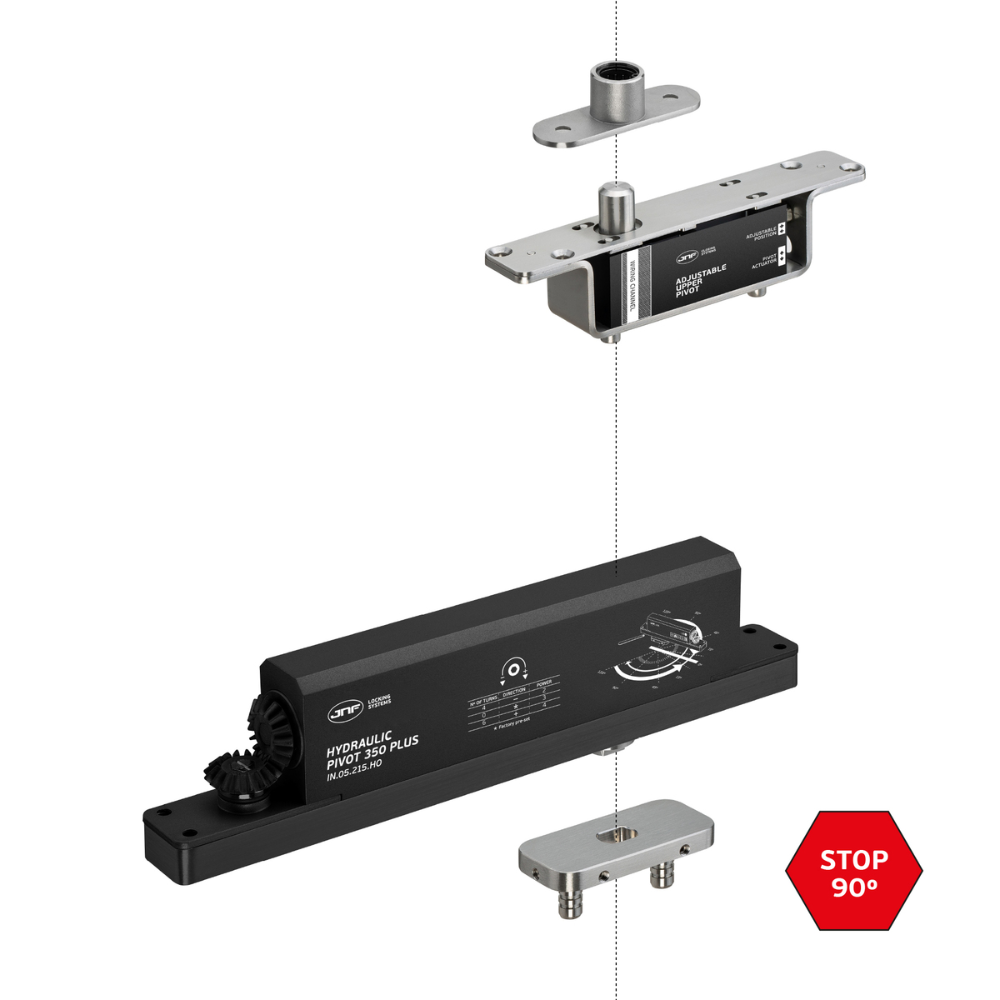

The pivot mechanism is seamlessly concealed within the door, leaving only a minimal base visible on the floor. Its satin stainless steel finish enhances contemporary interiors while ensuring lasting durability.

Flexible Installation

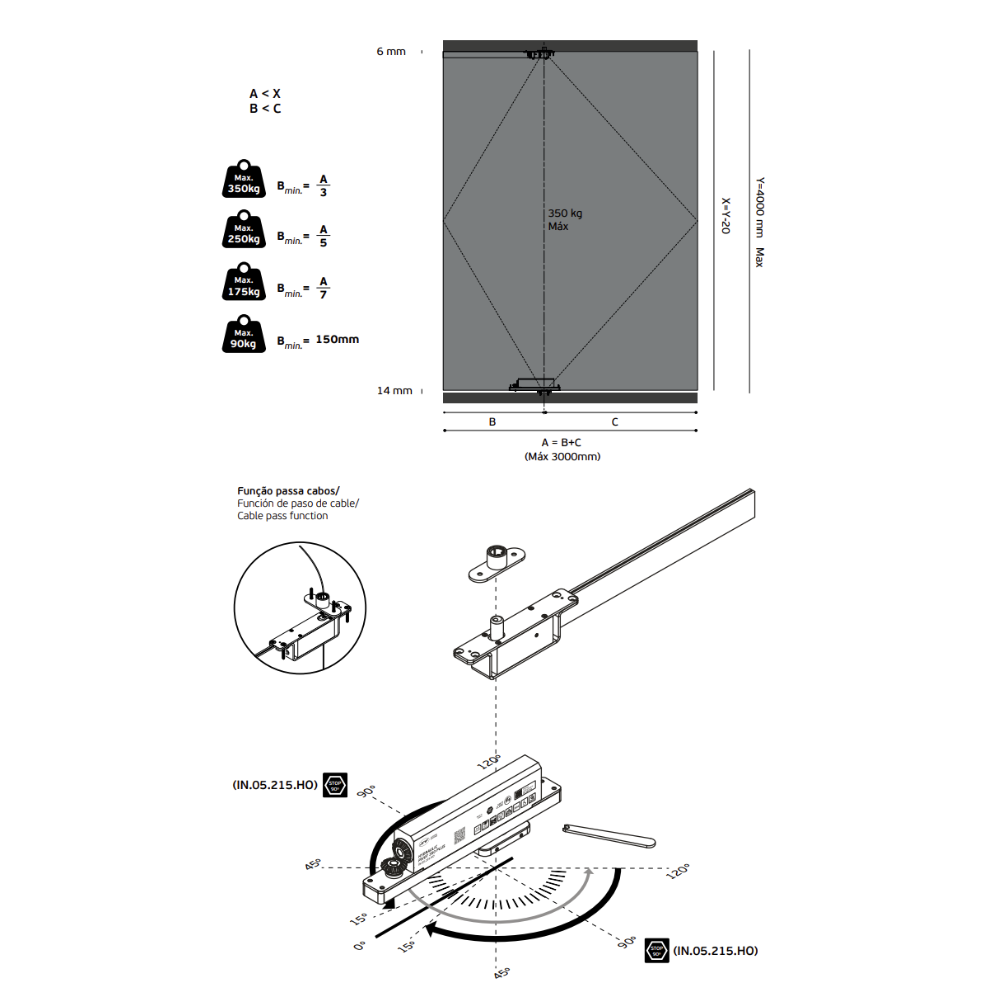

Compatible with both single and double-action doors with a minimum thickness of 40mm. The adjustable pivot point, positioned up to 150mm from the door’s center, allows for stunning floor-to-ceiling installations with ease.

Product Highlights

  • Innovative Pivot System: Combines CAM technology and hydraulics for superior functionality.
  • Bidirectional Regulation: Guarantees precise door movement and controlled closing.
  • Built-in Bearings: Ensures stability and durability at the rotation point in the roof or upper frame.
  • Effortless Operation: Designed for smooth opening with minimal effort.

Applications

Ideal for high-end residential projects, commercial properties, and architectural showpieces that demand exceptional performance and sophisticated design.

Elevate your door hardware solutions with the JNF Hydraulic Pivot 350 Plus, a product crafted to meet the exacting standards of modern architecture.

Order Your IN.05.215.HO Now and experience premium quality and performance exclusively distributed by Apollo Design in Australia.

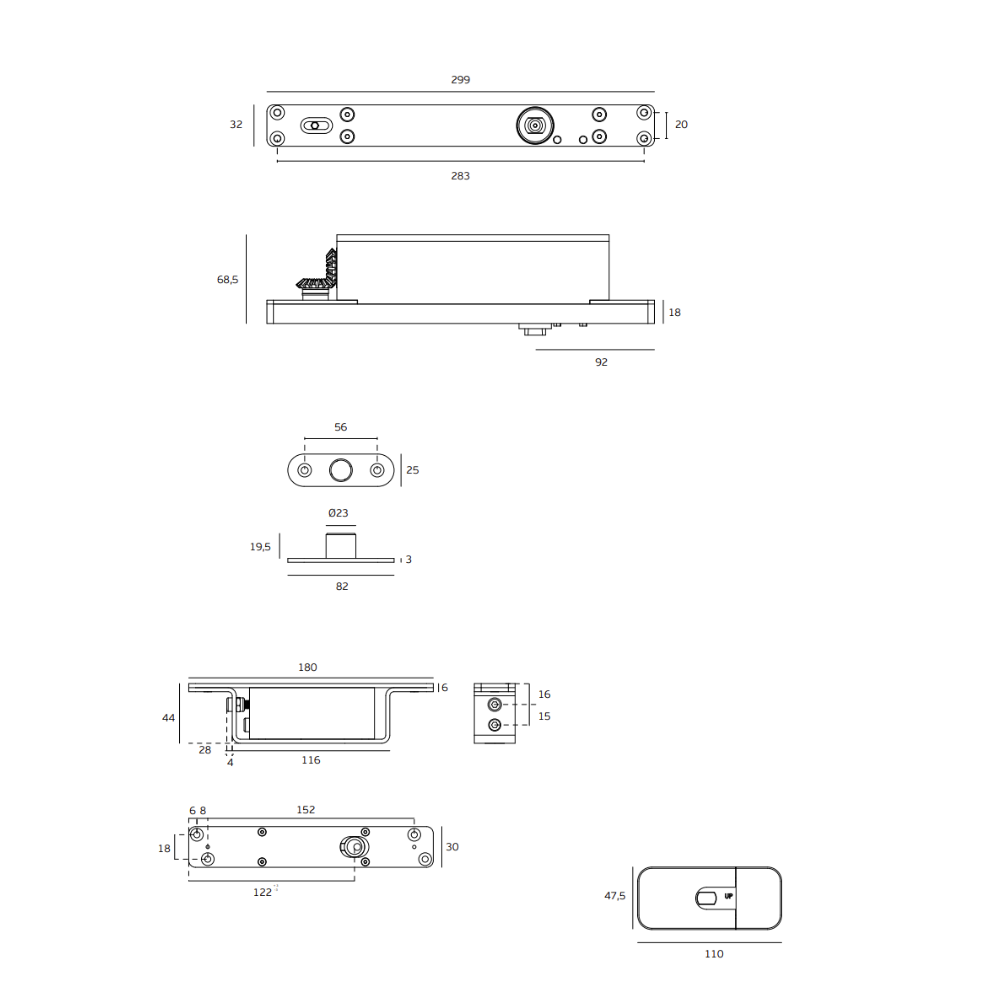

Specification

Max Weight: 350kg
Min. Door Thickness: 40mm
Max Door Length: 3000mm
Max Door Height: 4000mm
Cam Action: Yes
Hold Open: Yes
90º Stop: Yes
Soft Close: Yes
DDA Compliant: Yes
Power Adjustment: Spring
Masonry Work Required: No
