JNF Hydraulic Pivot 500 Plus
JNF Hydraulic Pivot 500 Plus
SKU:IN.05.216.HO
Transform your spaces with the JNF Hydraulic Pivot 500 Plus, a revolutionary pivoting system designed for large doors weighing up to 500kg. Exclusively distributed by Apollo Design in Australia, this advanced solution seamlessly blends strength, precision, and elegance for modern architectural projects.
Why Choose the JNF Hydraulic Pivot 500 Plus - IN.05.216.HO?
Built for Heavy-Duty Applications
Engineered to handle doors up to 500kg, with dimensions reaching 3000mm wide and 4000mm high. The force adjustment feature ensures reliable performance even after installation.
Cutting-Edge Hydraulic Technology
Featuring a CAM system paired with hydraulic controls, it offers effortless opening and precision closing. Dual valves allow you to fine-tune the initial and final closing speeds—perfect for doors with locks requiring secure and smooth operation.
Sleek, Discreet Design

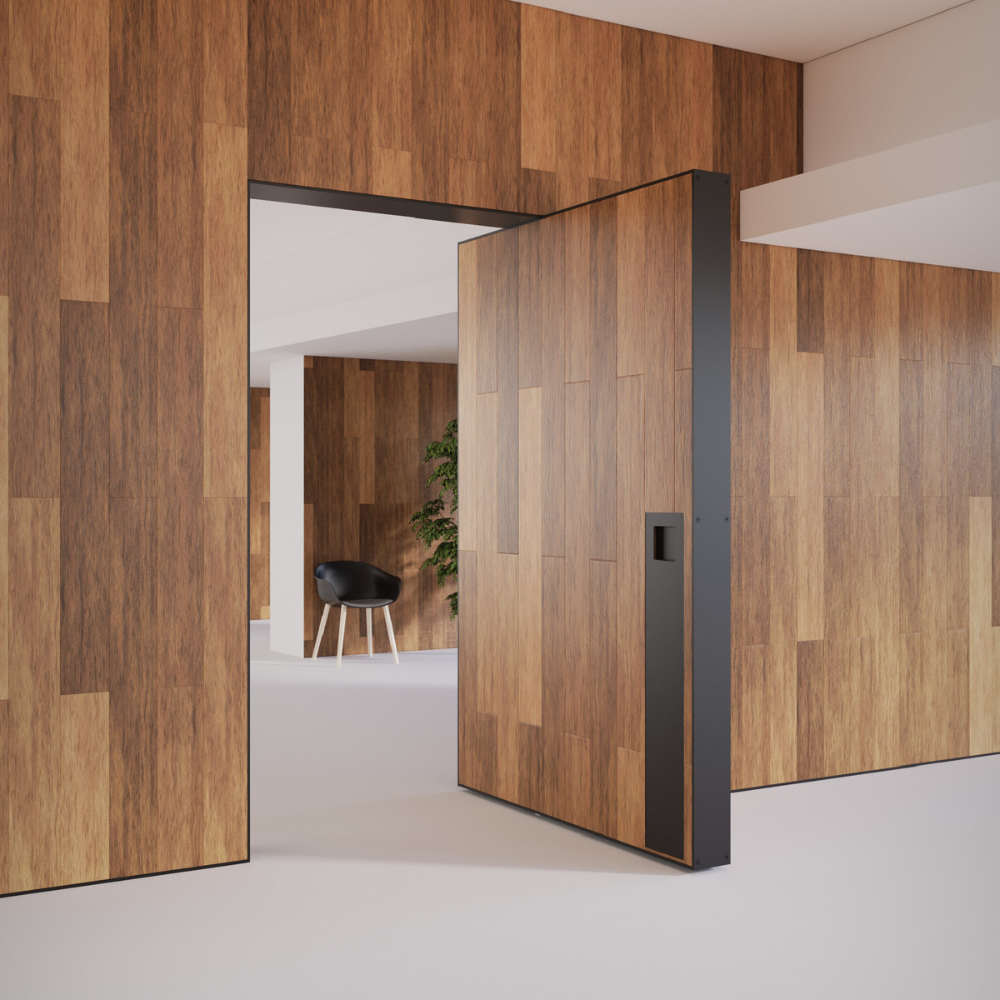

The pivot mechanism is hidden inside the door, leaving only a minimal, modern base visible on the floor. A durable satin stainless steel finish enhances the contemporary aesthetic while ensuring lasting performance.
Versatile Installation

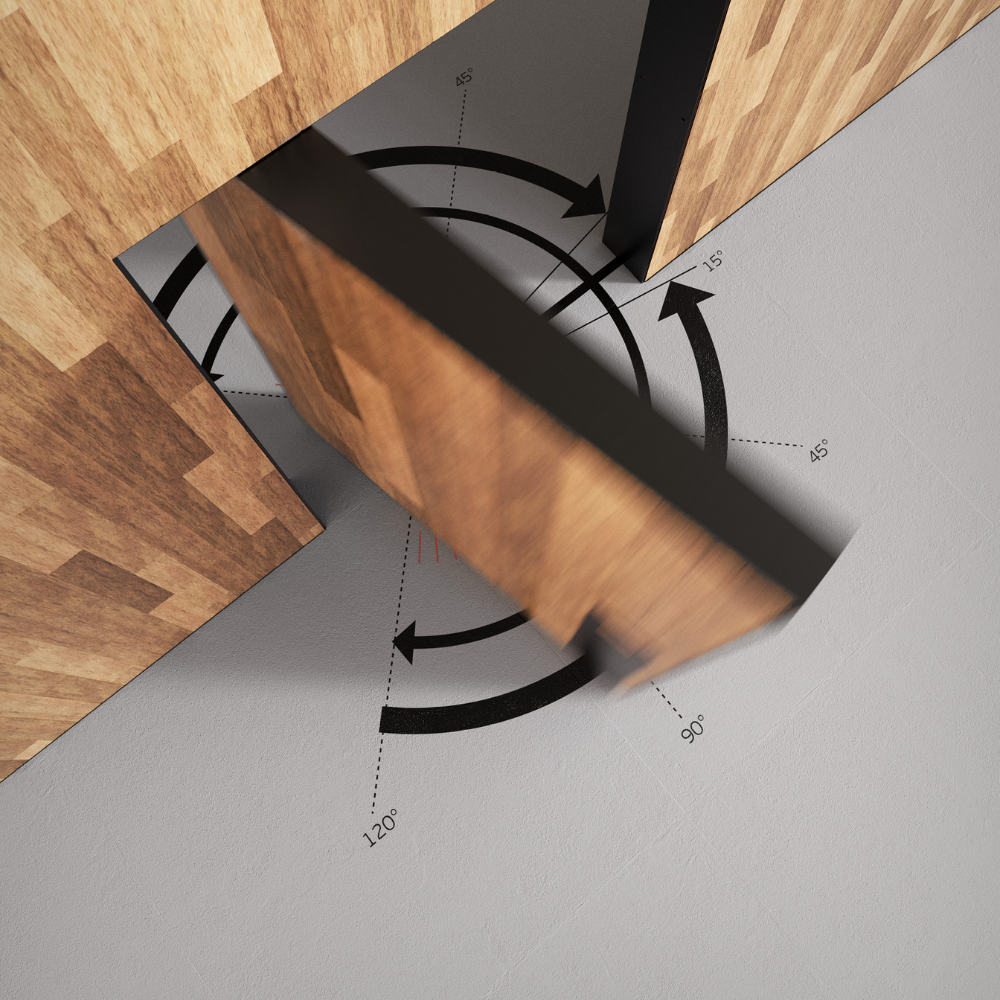

Suitable for both single and double-action doors with a minimum thickness of 60mm. The adjustable pivot point, up to 150mm from the door’s centre, enables hassle-free floor-to-ceiling installations.
Key Features
- Innovative Hydraulic CAM System for superior functionality and control.
- Bidirectional Regulation ensures smooth and precise door movement.

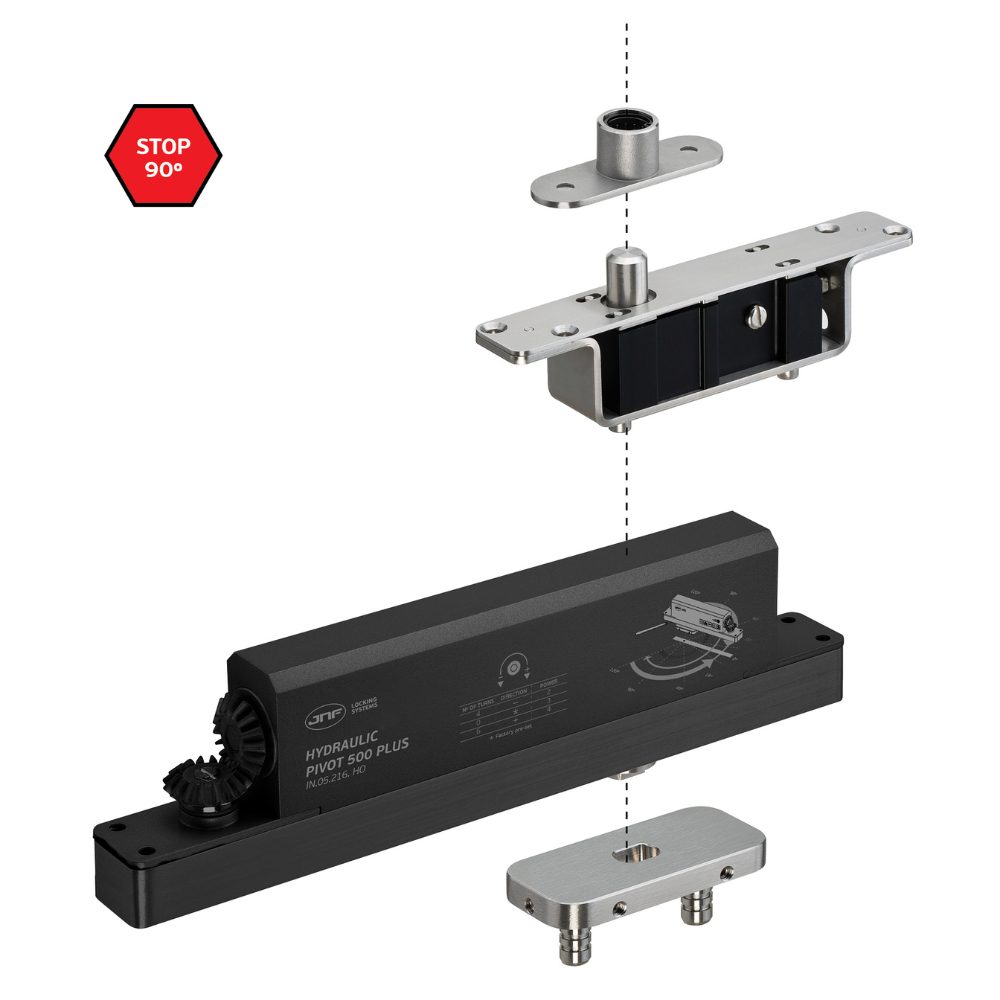

- Built-In Bearings enhance stability and durability at the upper rotation point.
- Effortless Operation for seamless opening and closing.
Ideal Applications
The IN.05.216.HO is perfect for luxury residences, commercial spaces, and architectural projects where performance and style are paramount.
Elevate Your Spaces Today
Discover the exceptional functionality and durability of the JNF Hydraulic Pivot 500 Plus, available exclusively through Apollo Design's trusted resellers. Experience cutting-edge innovation tailored to meet the demands of modern architecture.
Order Now and redefine your door hardware solutions.
Specification
Specification
Max Weight: 500kg
Min. Door Thickness: 60mm
Max Door Length: 3000mm
Max Door Height: 4000mm
Cam Action: Yes
Hold Open: Yes
90º Stop: Yes
Soft Close: Yes
DDA Compliant: Yes
Power Adjustment: Spring
Masonry Work Required: No
